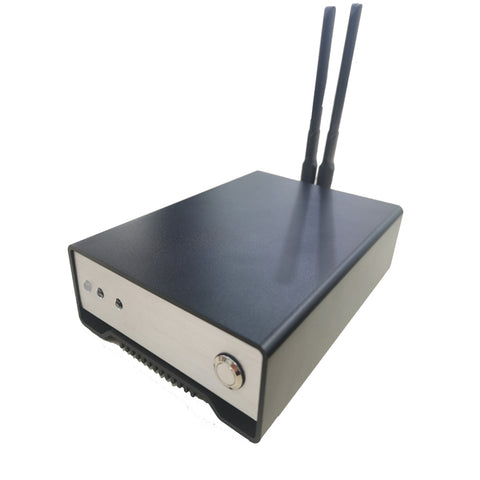

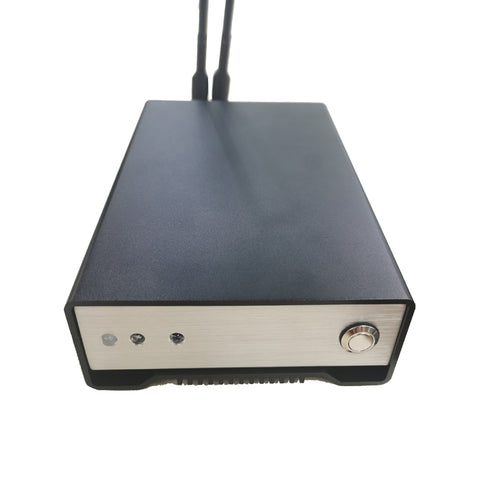

GW900 DMR & 4G LTE Multimode Gateway

$2,000.00 $1,600.00

4.5 out of 5 based on 0 customer ratings



The voice and data are the most crucial during the Mission-critical using, no errors is allowed to occur to ensure the smooth transmission. With the increasing popularization and diversification of network and Android applications, different industry apps to build up a mobile OA platform, users have to hola a two-way radio in one hand and a smart phone in another hand which is rather troublesome and bothering. At this time, you just need to have a Boxchip S900A Plus network radio LTE+DMR multi-mode advanced radio, all those troubles will be a thing of the past.
While ensuring real-time connectivity, you can also enjoy the conveniences of technology.

Download Catalog







Radio Parameters
Frequency Band UHF: 400-470MHz or VHF: 136-174MHz
Channel 1000 or customize
Channel Spacing 12.5KHz/25KHz
Tx Power 1W/2W
Rx sensitivity Analog:-121dBm/12db SINAD(Rated)
Digital:-117dBm/BER 1%
Intermodulation ≥65dB
Blocking ≥84dB
Spurious of Suppression ≥70dB
Response ≥70dB
Neighborhood selectivity ≥60dB
Frequency stability ±0.5ppm
Antenna Impedance 50Ω characteristic impedance
Audio Output 1W(Rated)
Audio Distortion ≤3%
End to end Encryption ARC4/AES128/AES256

PoC Main Parameters
Processor 4-Core MT6739
Operation System
Android 9.0
Language Support Multi-language
Memory RAM+ROM 2GB + 16GB
SD Card Up to 128GB
LCD Without LCD,  monitor via USB-C port
SIM Card Support Dual Nano-SIM Card
WCDMA B1 B2 B5 B8
FDD-LTE B1 B3 B5 B7 B8 B20 B26 B28A/B(EU Version)
FDD-LTE B1 B2 B4 B5 B7 B8 B12 B13 B17 B26 B28A/B(US Version)
TDD-LTE B38 B39 B40 B41
Bluetooth BT 4.0 BR/EDR + BLE  Operation Distance 10 Meter
Antenna Built-in FPC Antenna
Battery capacity 4500 mAh
Wi-Fi (WLAN) IEEE802.11 b/g/n 2.4G+5.8G
IP Level IP54
Work Temperature -25℃ ~ +60℃
Storage Temperature -40℃ ~ +85℃
Humidity ≤ 95%
Dimension 120mm*46mm*170mm
Terminal Weight 0.85 kg
With Standard Package Weight About 1.5 kg
Standard Accessories 5V 2A power adapter *1, 4G glue rod antenna *2, DMR copper rod antenna *1, TYPE-C USB data cable *1
