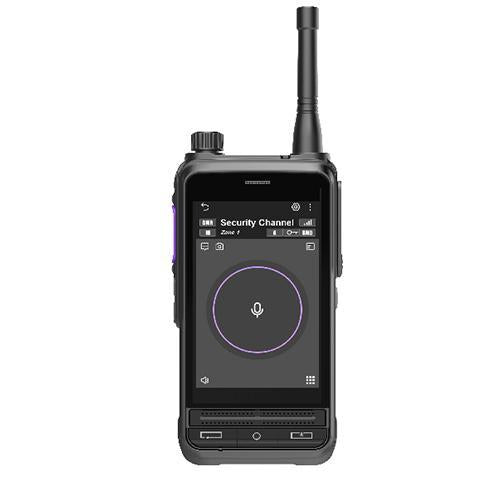

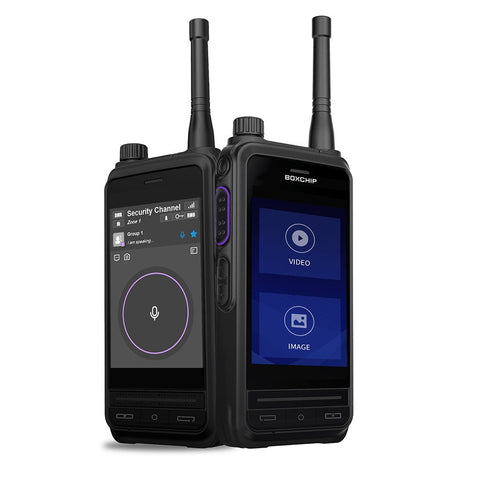

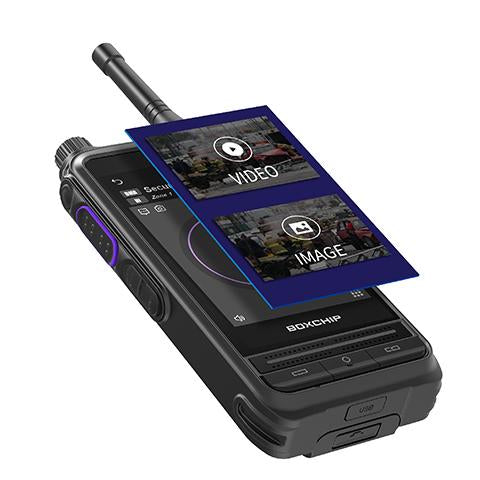

S900A Plus DMR & 4G LTE Multimode PTT-Over-Cellular all in One Network Radio

$1,500.00 $750.00

4.5 out of 5 based on 0 customer ratings



The voice and data are the most crucial during the Mission-critical using, no errors is allowed to occur to ensure the smooth transmission. With the increasing popularization and diversification of network and Android applications, different industry apps to build up a mobile OA platform, users have to hola a two-way radio in one hand and a smart phone in another hand which is rather troublesome and bothering. At this time, you just need to have a Boxchip S900A Plus network radio LTE+DMR multi-mode advanced radio, all those troubles will be a thing of the past.
While ensuring real-time connectivity, you can also enjoy the conveniences of technology.

Download Catalog



Discover the LTE Multi-mode Handsets Radios Online

LTE multimode radios are a generally new kind of 2-way PTT (Push To Talk) Radio Communications Equipment that utilizes existing electronic segments, RF modules, contact screens, and sub congregations mass-produced for the cell phone industry.

These parts are utilized to make numerous styles of handheld, convenient, and in-vehicle gadgets that element worked in LTE radio and additionally outer module amplifiers with the PTT switch.

Find the Best Multi-mode Advanced Radios

Multi-mode advanced radio is viably classed as the permit absolved radio correspondences hardware. The end client doesn't need a permit to work these gadgets on versatile organizations or WiFi associations as the groups of radio range utilized for portable organization interchanges are authorized by the organization foundation proprietors or network services and WiFi associations use permit excluded ISM band frequencies.

Network radios are the piece of a media communications framework that interfaces singular gadgets to different pieces of an organization through radio associations. Network lives between client hardware, for example, a cell phone, a PC, or any distantly controlled machine, and furnishes the association with its center organization. The network is a significant segment of remote broadcast communications and has advanced through the ages of portable systems administration paving the way to 5G.

The particular groups, uplink or downlink frequencies, modes, and information move conventions utilized at some random time rely upon the determinations of the network radios being used, portable information supplier of SIM type, and cell tower network inclusion at the current area.

​The 4G LTE android radios don't have to stress over choosing or changing between the different groups, modes, and so on as the organization radio arrangements with all the band, recurrence, recipient gain, RF yield force, and mode exchanging naturally as neighborhood conditions and sign qualities change.

These 4G LTE radios are out and out Android gadgets with the power receiving wire and battery life, Push to talk button, channel selector, noisy speaker, and abilities on numerous radio groups. They are an ideal supplement for Zello in mechanical applications.



Radio Parameters
Frequency Band UHF: 400-470MHz or VHF: 136-174MHz
Channel 1000 or customize
Channel Spacing 12.5KHz/25KHz
Tx Power 1W/2W
Rx sensitivity Analog:-121dBm/12db SINAD(Rated)
Digital:-117dBm/BER 1%
Intermodulation ≥65dB
Blocking ≥84dB
Spurious of Suppression ≥70dB
Response ≥70dB
Neighborhood selectivity ≥60dB
Frequency stability ±0.5ppm
Antenna Impedance 50Ω characteristic impedance
Audio Output 1W(Rated)
Audio Distortion ≤3%
End to end Encryption ARC4/AES128/AES256

PoC Main Parameters
Processor CPU 1.5GHz
Android Android 9.0+
Memory 2GB /16GB
LCD touch 4.0inch TFT IPS,400*480 Pixels,gorillia III
Lcd touch feature Web touch/ Glove touch/ Solar visibility
LCD Size 4.0inch,800*480 Pixels
Camera 8MP+ 5MP camera;Optional 13MP+8MP
Flash light Highlight flash LED
SIM Card Support Dual Nano Sim
WCDMA B1 B2 B5 B8
FDD-LTE B1 B3 B5 B7 B8 B20 B26 B28A/B(EU Version)
FDD-LTE B1 B2 B4 B5 B7 B8 B12 B13 B17 B26 B28A/B(US Version)
TDD-LTE B38 B39 B40 B41
Bluetooth Dual Bluetooth 4.2
NFC Support or Optional
Battery capacity 4500 mAh
Wi-Fi (WLAN) 2.4G/ 5.8G
GPS navigation GPS/AGPS/GLONASS
Sensor Acceleration,Proximity Sensor,Light Sensor,Gyro Sensor,(Compass Sensor)
External Port Motorola M6
Operating Temperature -15℃ ~ 60℃
Storage Temperature -40℃ ~ 80℃
Humidity 20% ~ 90%
USB type USB2.0, Type C USB Port
External Accessories Support Remote micro speaker, Eearbud, Body camera
Dimension 69mm*143mm*26mm
Inner Package Size 19.5cm*18.4cm*3.6cm
Terminal Weight 375G
With Standard Package Weight 800G
Outer Package 20pcs/Carton, 16kg/Carton
Carton Size (L*W*H) 39cm*37cm*18cm
Standard Accessories Type C USB cable, Charger, Back Clip, Antenna, Antenna Hat
Certification CE, FCC, MSDS, UN38.3

Click RED-CE Certification Download Test Report

FCC Certificate



Registation of Design




Optional Hardware Customization

Hardware
Special industry custom noise reduction microphone
Hardware
NFC customization (Wireless Pay)
Hardware
Memory 3GB+32GB
Camera
Built-in camera (Front 5M/Rear 13M)
