Sale!

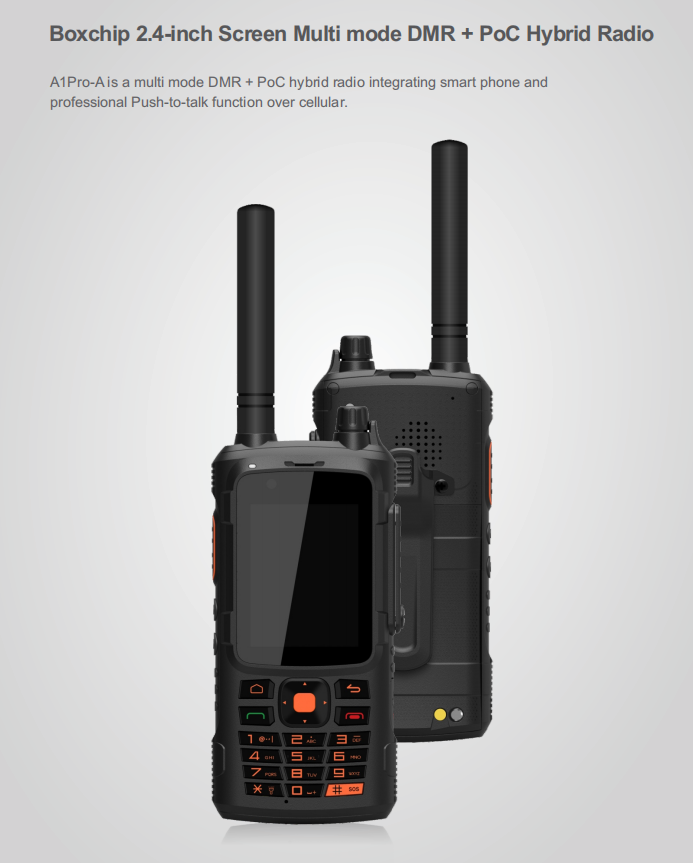

A1Pro-A DMR/Analog and 4G LTE Hybrid IP67/IP65 Ruggedized Radio

$475.00 $379.00

4.5 out of 5 based on 0 customer ratings

Download Catalog

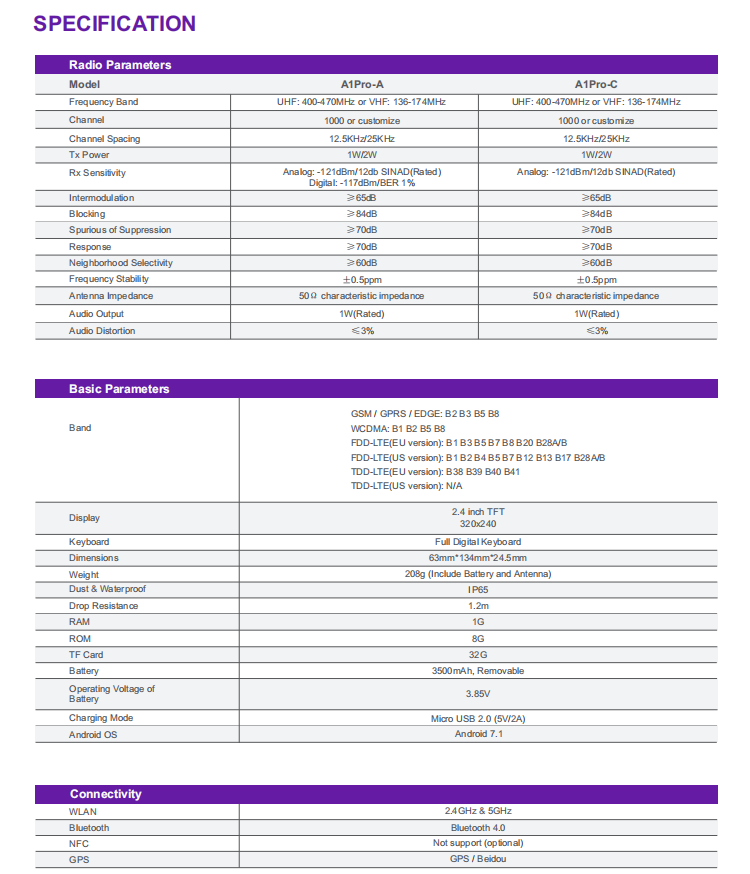

Radio Parameters
Frequency Band UHF: 400-470MHz or VHF: 136-174MHz
Channel 1000 or customize
Channel Spacing 12.5KHz/25KHz
Tx Power 1W/2W
Rx sensitivity Analog:-121dBm/12db SINAD(Rated)
Digital:-117dBm/BER 1%
Intermodulation ≥65dB
Blocking ≥84dB
Spurious of Suppression ≥70dB
Response ≥70dB
Neighborhood selectivity ≥60dB
Frequency stability ±0.5ppm
Antenna Impedance 50Ω characteristic impedance
Audio Output 1W(Rated)
Audio Distortion ≤3%



PoC main Specification
CPU Quad-Core 1.3GHz
Android OS. Android 7.1
LCD Size 2.4 Inch TFT
LCD Touch Multi-touch
Camera 5M pixel+ 2M pixel;
USB Port USB2.0, Micro USB
Waterproof IP65 default (IP67 Optional), shake-proof, dustproof
Voice VOLTE/CSFB
Flashlight With flashlight
Dual SIM card Dual Micro Sim Support
GSM / GPRS / EDGE 850/900/1800/1900MHz
GSM B2 B3 B5 B8
WCDMA B1 B2 B5 B8
FDD-LTE(EU version) B1 B3 B5 B7 B8 B20 B28A/B
FDD-LTE(US version) B1 B2 B4 B5 B7 B12 B13 B17 B28A/B
TDD-LTE(EU version) B38 B39 B40 B41
TDD-LTE(US version) N/A
Bluetooth Bluetooth 4.2
Battery 3500Mah
Wi-Fi(WLAN) 802.11b/g/n 2.4G
NFC Not support (optional)
GPS GPS / GLONASS
Speaker 2W power
Product Size 134mm*65mm*23.5mm
Package Size 18.5*17.6*4 cm
Full retail package weight 0.53KG
